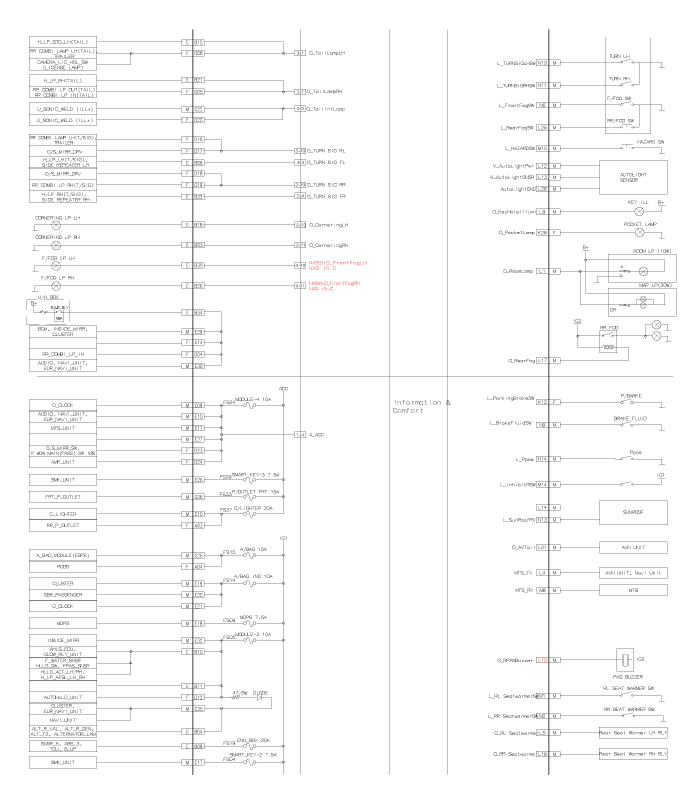

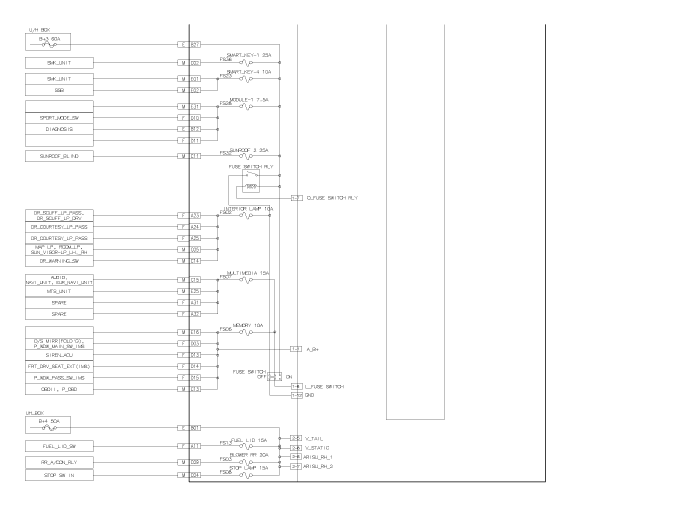

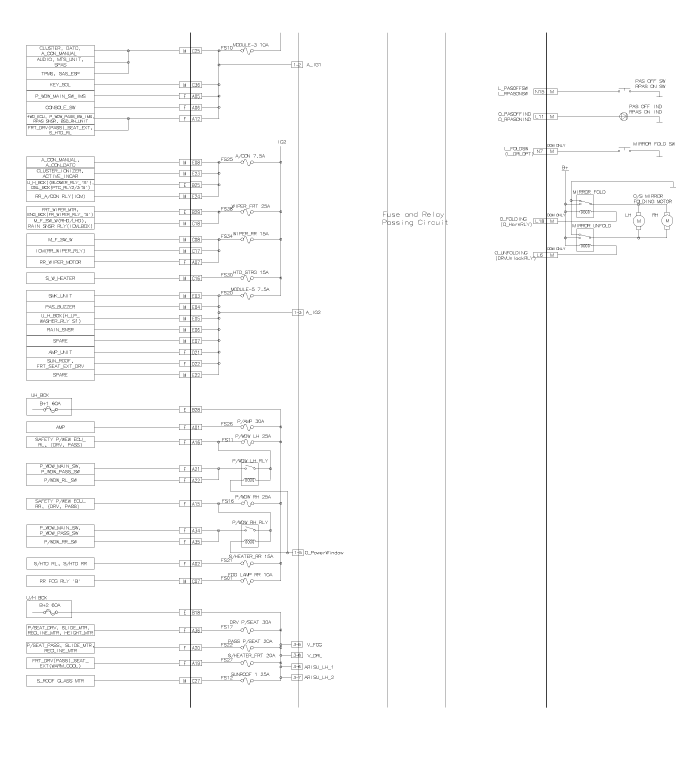

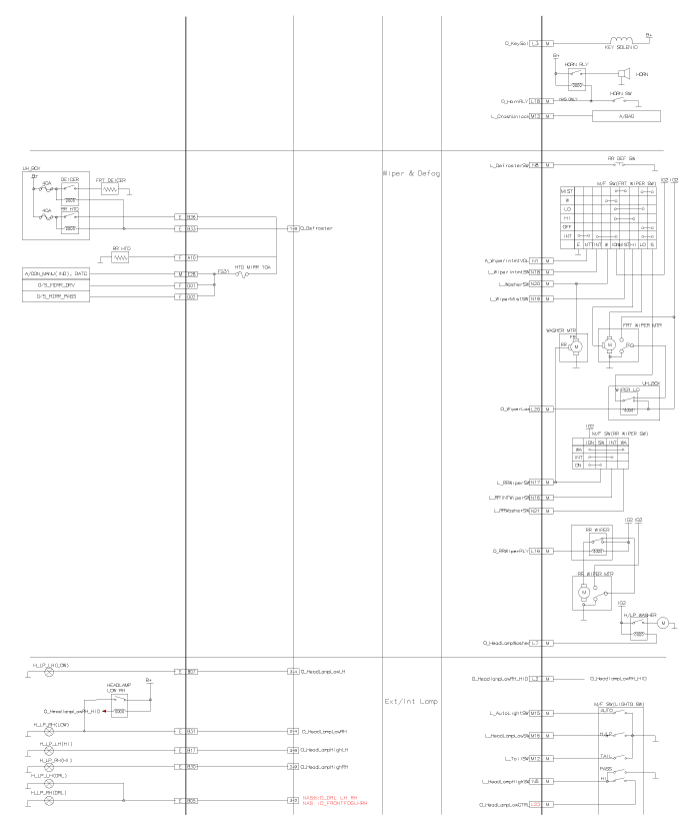

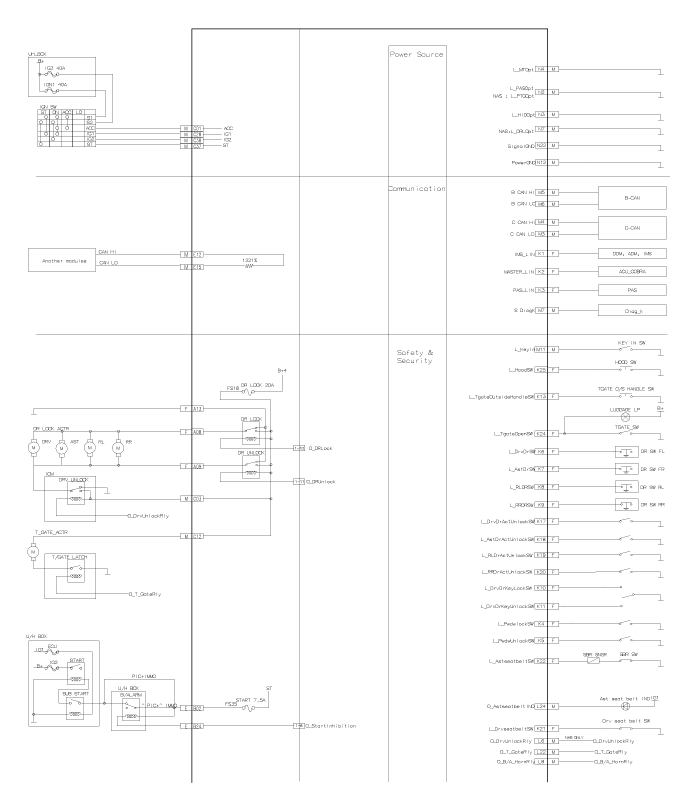

Kia Sorento: IPM Circuit Diagram - BCM (Body Control Module) - Body Electrical SystemKia Sorento: IPM Circuit Diagram

Kia Sorento (XM, 2011-2015) Service Manual / Body Electrical System / BCM (Body Control Module) / IPM Circuit Diagram

IPM Components
Outer Connector (L / M / N / K) Connector Pin No. Description Active Remark K 1 IMS LIN     2 ...
IPM Description
IPM (Intelligent intergrated Platform Module) receives various input switch signals ling time and alarm fuctions for fr washer interlocking wiper, fr intermittent wiper, mist wiper, rear washe...
