Kia Sorento: Engine Mounting Components
Kia Sorento (XM, 2011-2015) Service Manual / Engine Mechanical System / Engine And Transmission Assembly / Engine Mounting Components

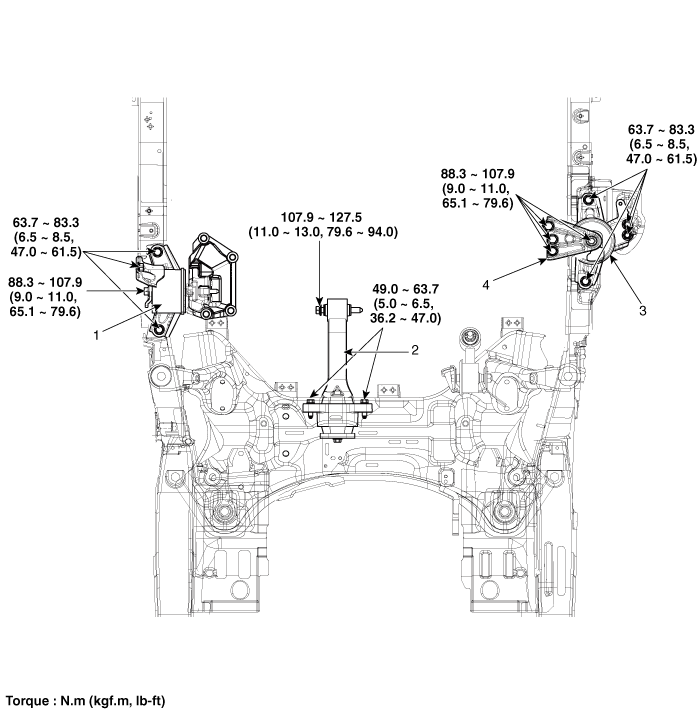

| 1. Transaxle mounting bracket 2. Roll rod bracket |
3. Engine mounting bracket 4. Engine mounting support bracket |
Engine Room Under Cover Removal and Installation
1.
Unfasten the fasteners and bolts and then remove the engine room under
cover (A).
Tightening torque:
7.8 ~ 11.7 N.m (0.8 ~ 1.2 kgf.m, 5.7 ~ 8...
Engine Mounting Removal and Installation
Roll road Bracket
1.
Remove the roll road bracket(A).
Tightening torque
Bolt (B) :
49.0 ~ 63.7 N.m (5.0 ~ 6.5 kgf.m, 36.2 ...
