Kia Sorento: IPM Components

Kia Sorento (XM, 2011-2015) Service Manual / Body Electrical System / BCM (Body Control Module) / IPM Components

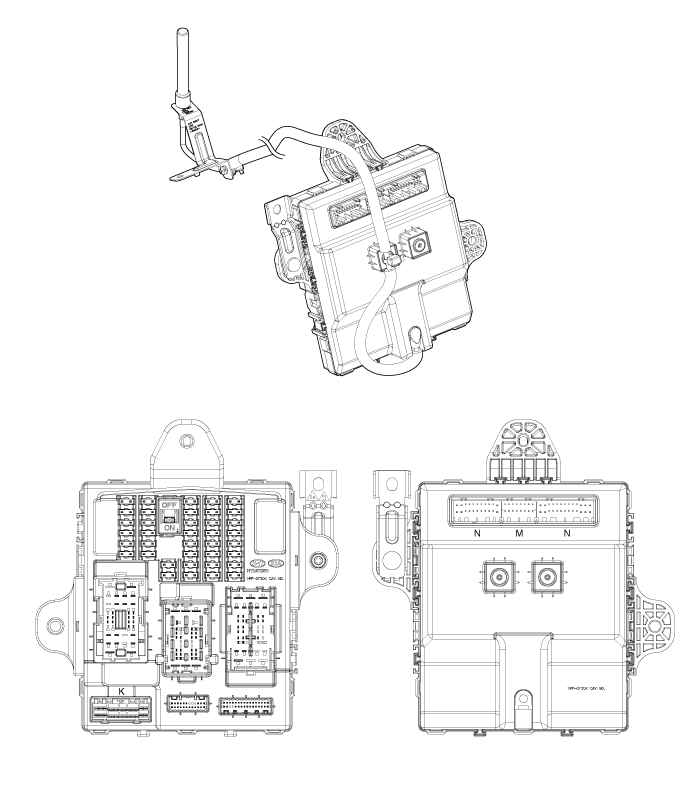

Outer Connector (L / M / N / K)

Connector	Pin No.	Description	Active	Remark
K	1	IMS LIN
	2	Master LIN
	3	PAS LIN
	4	Power window lock switch	Low	Input
	5	Power window unlock switch	Low	Input
	6	Driver door switch	Low	Input
	7	Assist door switch	Low	Input
	8	Rear left door switch	Low	Input
	9	Rear right door switch	Low	Input
	10	Driver door key lock switch	Low	Input
	11	Driver door key unlock switch	Low	Input
	12	Parking brake switch	Low	Input
	13	Tailgate outside handle switch	Low	Input
	14	-
	15	-
	16	-
	17	Driver door actuator unlock switch	Low	Input
	18	Assist door actuator unlock switch	Low	Input
	19	Rear left door actuator unlock switch	Low	Input
	20	Rear right door actuator switch	Low	Input
	21	Driver seat belt switch	Low	Input
	22	Assist seat belt switch	Low	Input
	23	-
	24	Tailgate open switch	Low	Input
	25	Hood switch	Low	Input
	26	Pocket lamp	High	Output
L	1	Room lamp	Low	Output
	2	Head lamp RH HID	Low	Output
	3	Key solenoid	Low	Output
	4	MTS Tx	Low	Output
	5	Rear left seat warmer relay	Low	Output
	6	Driver door unlock relay	Low	Output
	7	Head lamp washer	Low	Output
	8	Burglar alarm horn	Low	Output
	9	Key hole illumination	Low	Output
	10	RPAS buzzer	Low	Output
	11	PAS OFF indicator	High	Output
	12	Auto light power		Output
	13	Auto light sensor	AD	Input
	14	Sun roof Tx		Output
	15	-
	16	Rear wiper relay	Low	Output
	17	Rear fog lamp relay	Low	Output
	18	Horn relay	Low	Output
	19	Rear right seat warmer relay	Low	Output
	20	Wiper low	Low	Output
	21	AV tail	Low	Output
	22	Tailgate latch	Low	Output
	23	Head lamp low control	Low	Output
	24	Assist seat belt indicator	Low	Output
	25	Rear fog lamp switch	Low	Input
	26	Auto ligth ground	GND
M	1	Rear left seat warmer switch	Low	Input
	2	Rear right warmer switch	Low	Input
	3	C CAN low	Data
	4	C CAN High	Data
	5	B CAN high	Data
	6	B CAN low	Data
	7	K Line
	8	MTS Rx		Input
	9	-
	10	Hazard switch	Low	Input
	11	Key IN	Low	Input
	12	Tail switch
	13	Crash unlock		Input
	14	R position	High	Input
	15	Auto light switch	Low	Input
	16	Head lamp low switch	Low	Input
N	1	Wiper intermittent volume	AD	Input
	2	PTG option	Low	Input
	3	HID option	Low	Input
	4	MT option	Low	Input
	5	Head lamp high switch	Low	Input
	6	Front fog switch	Low	Input
	7	DRL option	Low	Input
	8	Defroster switch	Low	Input
	9	Brake fuild switch	High	Input
	10	Trunk lamp switch - LH	Low	Input
	11	Trunk lamp switch - RH	Low	Input
	12	Power ground	GND
	13	Sun roof RX		Input
	14	P position	Low	Input
	15	PAS OFF switch	Low	Input
	16	Rear intermittent switch	High	Input
	17	Rear wiper switch	High	Input
	18	Wiper intermittent switch	High	Input
	19	Washer mist switch	High	Input
	20	Washer switch	High	Input
	21	Rear washer switch	High	Input
	22	Signal ground	GND	Input

IPM Specifications

Items Specifications Rated voltage DC 12V Operating voltage DC 9 ~ 16V Operating temperature -30...

IPM Circuit Diagram

...
