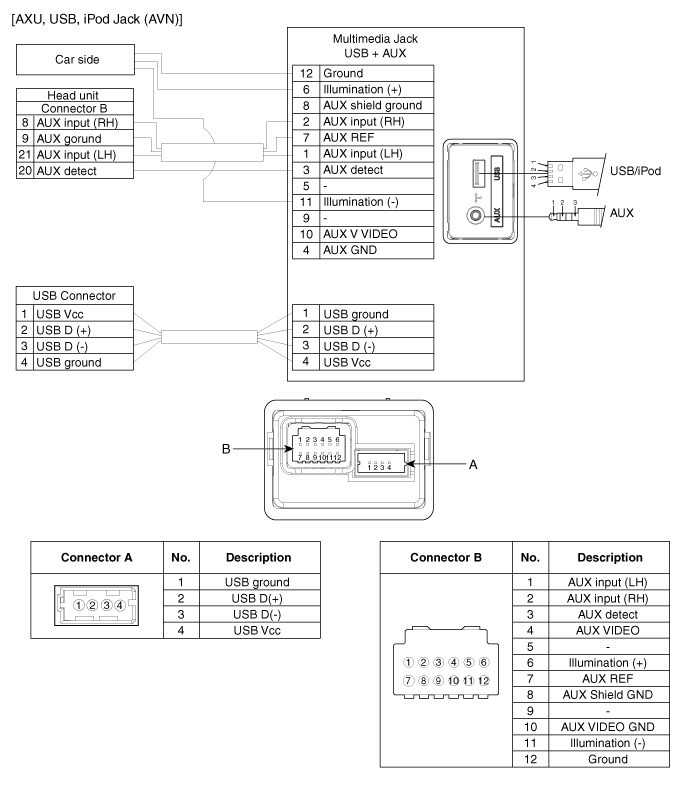

Kia Sorento (XM, 2011-2015) Service Manual / Body Electrical System / AVN System / Multimedia Jack Circuit Diagram
AVN Head Unit Installation
1.
Connect the AVN head unit connectors and cable.
2.
Install the AVN head unit.
3.
Install the center air vent duct and c...
Multimedia Jack Description
The multimedia jack on the console upper cover is for customers who like
to listen to external portable music players like the MP3, iPod and etc., through
the vehicle's sound system when it ...
