Kia Sorento (XM, 2011-2015) Service Manual / Body Electrical System / AVN System / Multimedia Jack Description

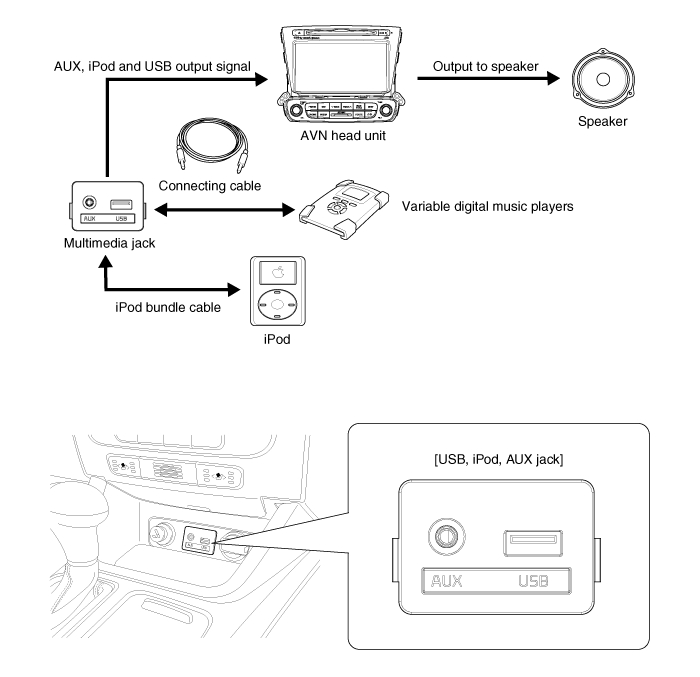

The multimedia jack on the console upper cover is for customers who like
to listen to external portable music players like the MP3, iPod and etc., through
the vehicle's sound system when it is linked to this jack. The customer has
this added option.
In case of distortions from media connected to the AUX source, the audio
unit may not be defective but the output level of the used media does not match
the specification of the AUX input.
Multimedia Jack Circuit Diagram
Put on gloves to protect your hands.
...
Multimedia Jack Removal
