Kia Sorento: Oil hydraulic Motor(Actuator) Inspection
Kia Sorento (XM, 2011-2015) Service Manual / 4 Wheel Drive (4WD) System / Coupling Assembly / Oil hydraulic Motor(Actuator) Inspection
If you have trouble code related to the oil hydraulic motor (actuator),
check oil hydraulic motor (actuator) according to the inspection process.
|

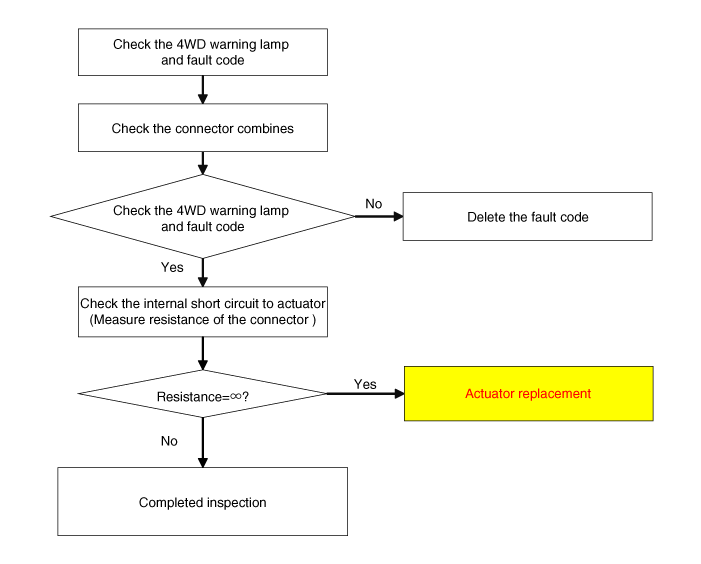

| Oil Hydraulic Motor (Actuator) Inspection Procedure |
Oil hydraulic Motor(Actuator) Circuit Diagram
Oil hydraulic Motor(Actuator) Removal
1.
Remove the coupling assembly.
(Refer to Coupling Assembly - "Direct Electro Hydraulic Actuator
Coupling")
2.
Keep going perpendic...
