Kia Sorento: Panorama Sunroof Switch Components
Kia Sorento (XM, 2011-2015) Service Manual / Body Electrical System / Panorama Sunroof / Panorama Sunroof Switch Components

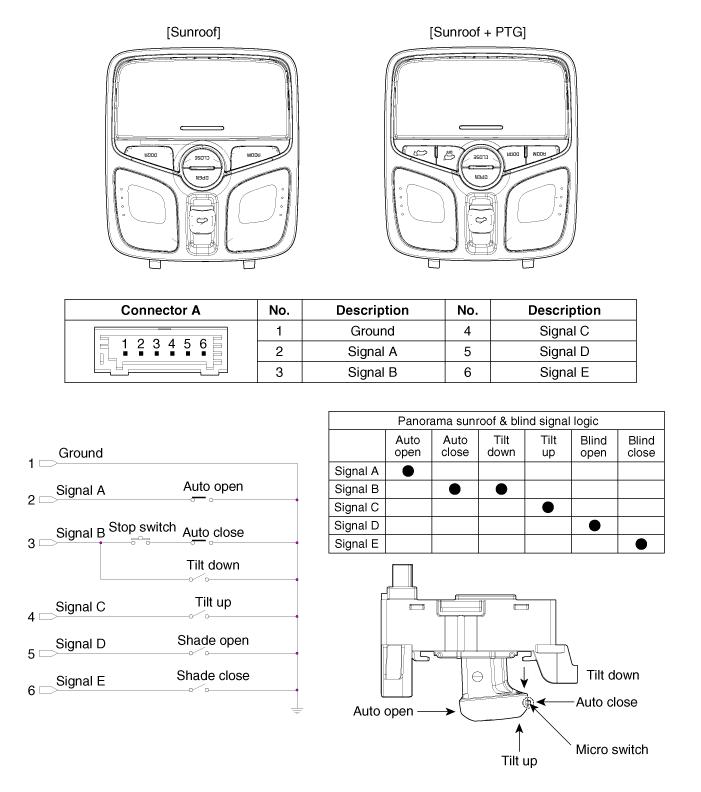

Connector Pin Information
No.
Wire harness connector
Panorama motor
Blind motor
1
Ground 1
...
Circuit Diagram
1.
Disconnect the negative (-) battery terminal.
2.
Open the sunglass case cover from the overhead console then remove
the 2 screws holding the overhe...
