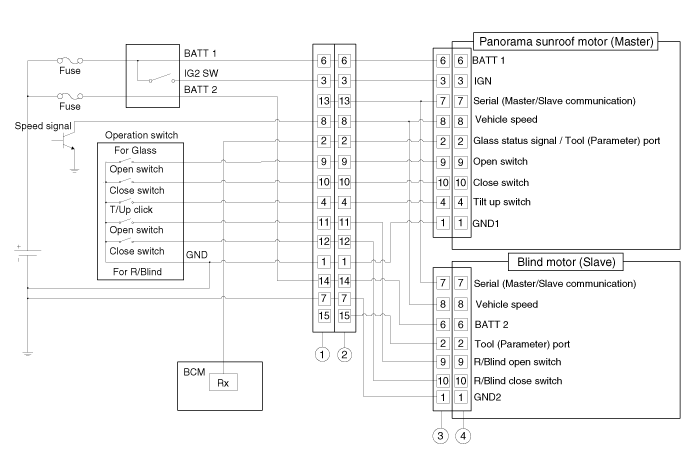

Kia Sorento: Circuit Diagram
Kia Sorento (XM, 2011-2015) Service Manual / Body Electrical System / Panorama Sunroof / Circuit Diagram
Connector Pin Information
| No. |
Wire harness connector |
Panorama motor |
Blind motor |
|
|
|
|
|
| 1 |
Ground 1 |
Ground 1 |
Ground 2 |
| 2 |
Glass status signal / Tool fot glass |
Glass status signal/ Tool (Parameter) |
Tool (Parameter) |
| 3 |
IGN 2 |
IGN 2 |
- |
| 4 |
Tilu up switch |
Tilu up switch |
- |
| 5 |
- |
- |
- |
| 6 |
Battery 1 |
Battery 1 |
Battery 2 |
| 7 |
Ground 2 |
Serial |
Serial |
| 8 |
Vehicle speed signal |
Vehicle speed signal |
Vehicle speed signal |
| 9 |
Glass open switch |
Glass open switch |
Blind open switch |
| 10 |
Glass close switch |
Glass close switch |
Blind close switch |
| 11 |
Blind open switch |
|
|
| 12 |
Serial |
||
| 13 |
Blind close switch |
||
| 14 |
Battery 2 |
||
| 15 |
Blind tool |
||
| 16 |
- |
1. Panorama sunroof (Panorama)
2. Panorama sunroof switch
3. Panorama sunroof motor & controller (Master)
4. Roller blind motor & controller (Slave)...
Component Location
Panorama Sunroof Switch Components
