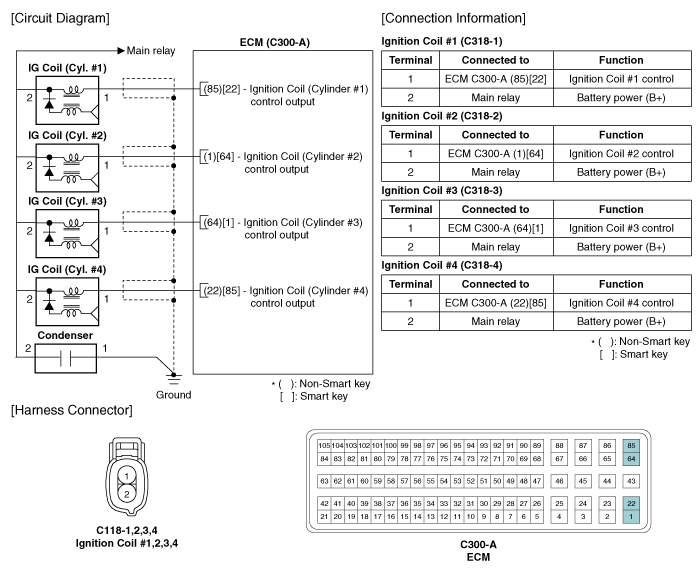

Kia Sorento: Ignition Coil Circuit Diagram
Kia Sorento (XM, 2011-2015) Service Manual / Engine Electrical System / Ignition System / Ignition Coil Circuit Diagram
Ignition Coil Specification
Item
Specification
Primary Coil Resistance (Ω)
0.62 ± 10％ [20°C (68°F)]
Secondary Coil Resistance (kΩ)
7.0 ± 15％ [20°C (68...
Ignition Coil Removal
1.
Disconnect the battery nagative terminal.
2.
Remove the engine cover.
3.
Disconnect the ignition coil connector (A).
...
See also:
Tire Removal
1.
Remove valve core and deflate the tire.
2.
Remove the side of the tire bead area from the wheel using tire
changing machine .
...
Hazard Lamp Switch Removal
•
Put on gloves to protect your hands.
...
License Lamps Removal
1.
Disconnect the negative (-) battery terminal.
2.
Remove the license lamp lens (A) from the panel after loosening
a screw.
...
