Kia Sorento: Pressure Sensor Inspection
Kia Sorento (XM, 2011-2015) Service Manual / 4 Wheel Drive (4WD) System / Coupling Assembly / Pressure Sensor Inspection
If you have trouble code related to the pressure sensor check
pressure sensor according to the inspection process.
|

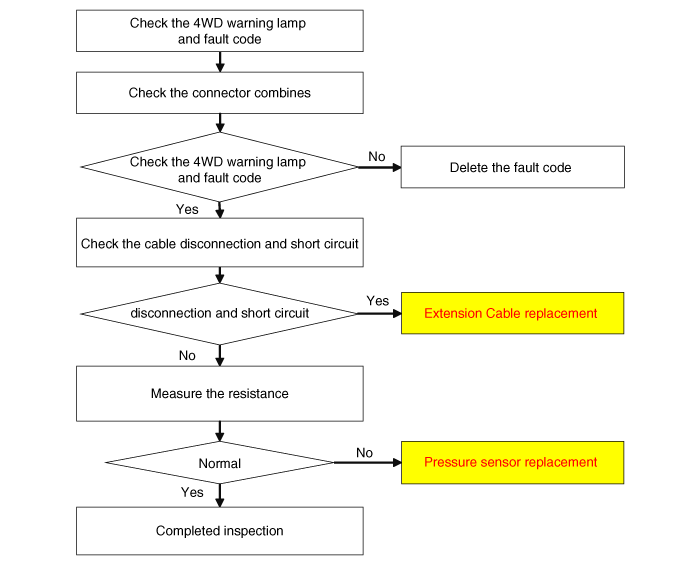

| Pressure Sensor Inspection Procedure |
| Measure the resistance of pressure sensor |
| 1. |
Turn ignition switch OFF.
|
| 2. |
Disconnect the pressure sensor connector.
|
| 3. |
Measure resistance between sensor terminal and terminal.
|
| 4. |
Check the measured resistance. (Refer to table)
|
Pressure Sensor Circuit Diagram
Pressure Sensor Removal
1.
Remove the coupling assembly.
(Refer to Coupling Assembly - "Direct Electro Hydraulic Actuator
Coupling")
2.
Remove the extension...
