Kia Sorento: Rear Bumper Components - Bumper - Body (Interior and Exterior)Kia Sorento: Rear Bumper Components

Kia Sorento (XM, 2011-2015) Service Manual / Body (Interior and Exterior) / Bumper / Rear Bumper Components

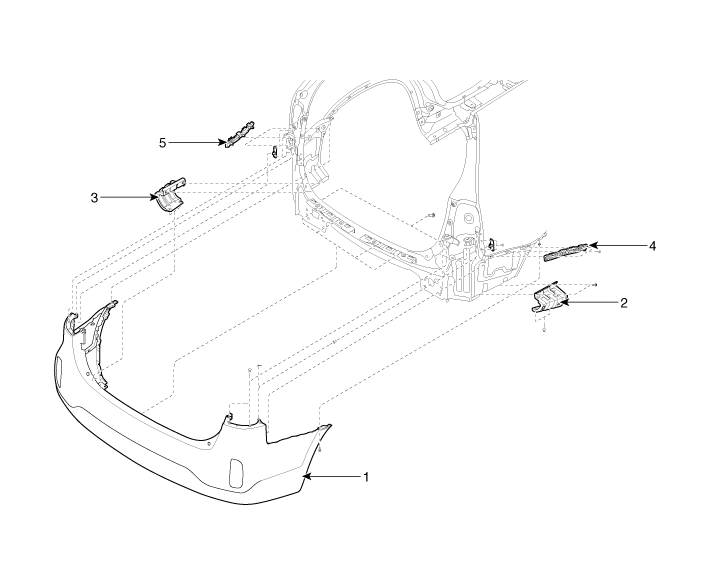

1. Rear bumper cover
2. Rear bumper lower bracket [RH]
3. Rear bumper lower bracket [LH]
4. Rear bumper side bracket [RH]
5. Rear bumper side bracket [LH]
