Kia Sorento: Rearview camera (If equipped) - Features of your vehicleKia Sorento: Rearview camera (If equipped)

Kia Sorento (XM, 2011-2015) Owner's Manual / Features of your vehicle / Rearview camera (If equipped)

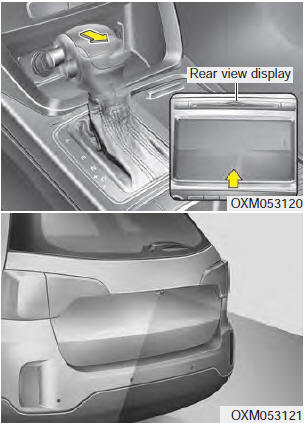

The rearview camera will activate with the ignition switch ON and the shift lever


The rearview camera will activate with the ignition switch ON and the shift lever in the R (Reverse) position.

This system is a supplemental system that shows behind the vehicle through the rearview display mirror while backing up unless equipped with a navigation system, then will display on the screen.

The rearview camera may be turned off by pressing the ON/OFF button when the rearview camera is activated.

To turn the camera on again, press the ON/OFF button again when the ignition switch is on and the shift lever in R (Reverse). Also, the camera will turn on automatically whenever the ignition switch is turned off and on again.

WARNING

Hazard warning flasher

The hazard warning flasher should be used whenever you find it necessary to stop


The hazard warning flasher should be used whenever you find it necessary to stop the vehicle in a hazardous location. When you must make such an emergency stop, always pull off the road as far as possible.

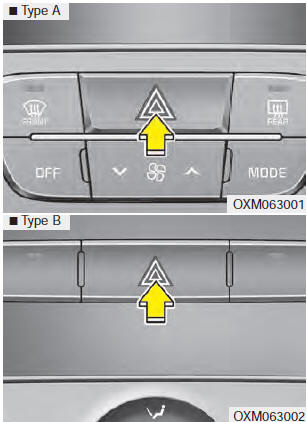

The hazard warning lights are turned on by pushing in the hazard switch. Both turn signal lights will blink. The hazard warning lights will operate even though the key is not in the ignition switch.

To turn the hazard warning lights off, push the switch again.

Operation of the rear parking assist system
Operating condition This system will activate when the indicator on the rear parking assist OFF button is not illuminated. If you desire to deactivate the rear parking assist system, press the re...
