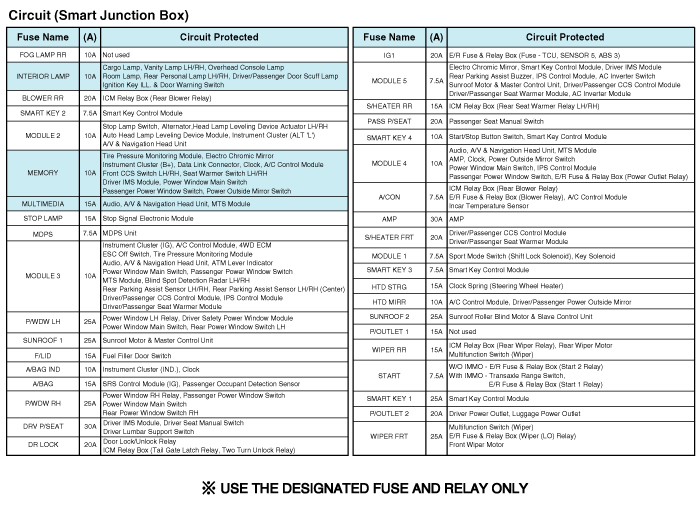

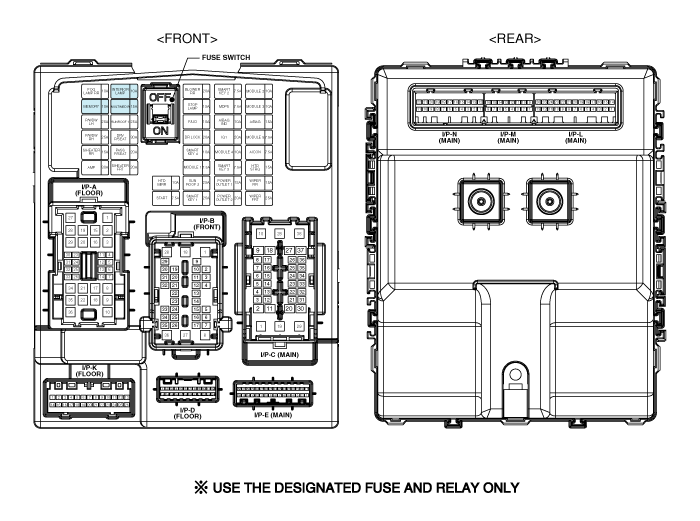

Kia Sorento: Relay Box (Passenger Compartment) Component Location

Kia Sorento (XM, 2011-2015) Service Manual / Body Electrical System / Fuses And Relays / Relay Box (Passenger Compartment) Component Location

Relay Box (Engine Compartment) Inspection

1. Disconnect the negative (-) battery terminal. 2. Pull out the relay from the engine compartment relay box. Power Relay (Type A) Check f...

Relay Box (Passenger Compartment) Inspection

Fuse 1. Be sure there is no play in the fuse holders, and that the fuses are held securely. 2. Are the fuse capacities for each circuit co...
