Kia Sorento: Smart key unit Components - Smart key System - Body Electrical SystemKia Sorento: Smart key unit Components

Kia Sorento (XM, 2011-2015) Service Manual / Body Electrical System / Smart key System / Smart key unit Components

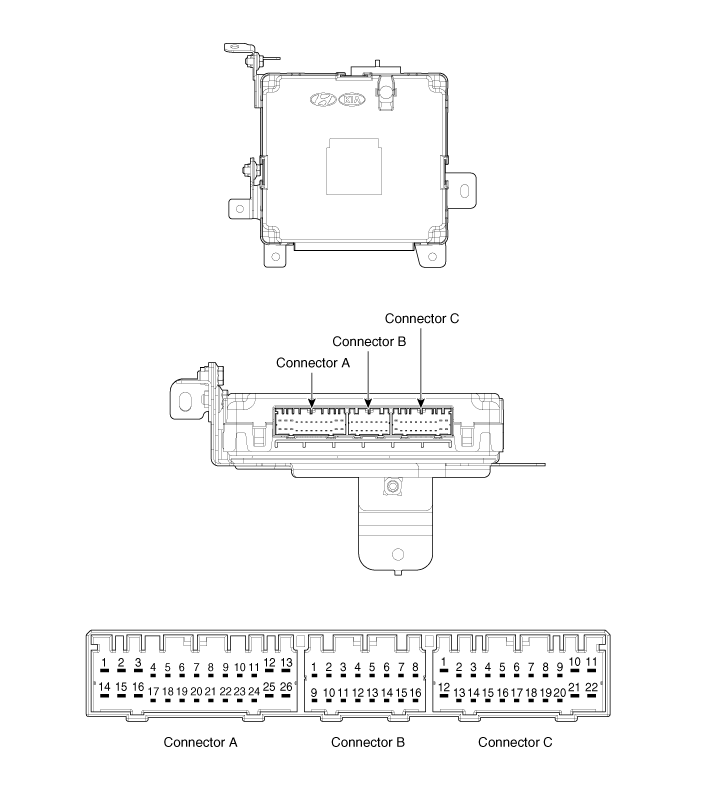

Connector Pin Information
No.
 Connector A
 Connector B
 Connector C
1
 V_BAT load
 C_CAN Low
 SSB illumination ground
2
 -
 C_CAN High
 -
3
 Power ground1
 -
 -
4
 IGN1
 Stop lamp fuse
 Interior antenna #2 power
5
 IGN1 relay
 Brake switch
 Interior antenna #1 power
6
 ACC
 Immobilizer antenna power
 -
7
 IGN2
 -
 -
8
 SSB switch2
 Wheel speed
 Interior antenna #3 power
9
 -
 Driver toggle button
 Bumper antenna power
10
 -
 -
 Assistant side antenna power
11
 -
 External buzzer
 Driver side antenna power
12
 B_CAN High
 P position/ Clutch switch
 SSB LED IGN
13
 B_CAN Low
 Start feedback
 SSB illumination power
14
 V_BAT CPU
 Immobilizer antenna ground
 -
15
 -
 Diagnostic
 Interior antenna #2 ground
16
 Power ground2
 SSB LED ACC
 Interior antenna #1 ground
17
 Starter relay
 　
 -
18
 IGN2 relay
 -
19
 ACC relay
 Interior antenna #3 ground
20
 -
 Bumper antenna ground
21
 Tailgate lid switch
 Assistant side antenna ground
22
 -
 Driver side antenna ground
23
 RPM
 　
24
 EMS COM
25
 SSB switch1
26
 Assistant toggle button

Smart Key
Smart Key Code Saving 1. Connect the DLC cable of GDS to the data link connector (16 pins) in driver side crash pad lower panel, turn the power on GDS. ...
Smart key unit Circuit Diagtam
...
