Kia Sorento: Start/Stop Button Component
Kia Sorento (XM, 2011-2015) Service Manual / Body Electrical System / Button Engine Start System / Start/Stop Button Component

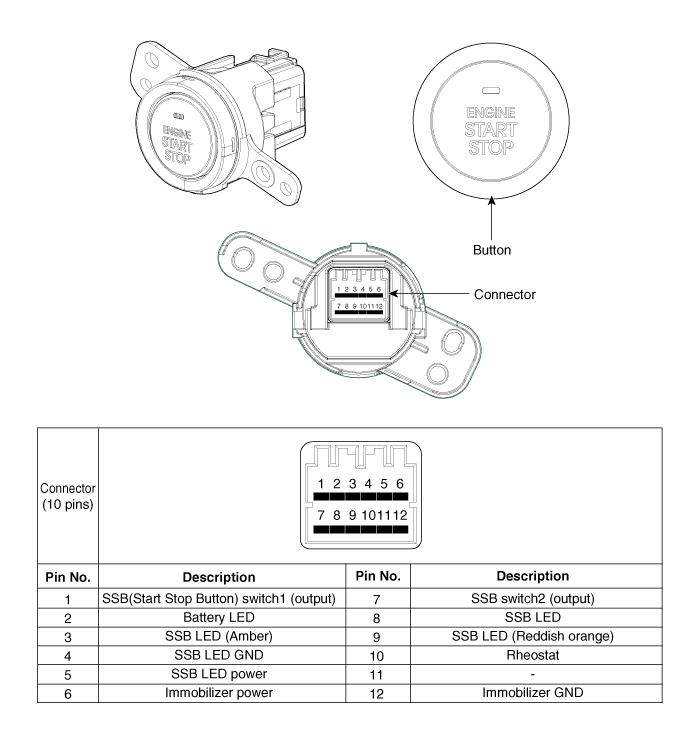

Description
System Overview
The System offers the following features:
-
Human machine interface through a 1-stage button, for terminal
switching and engine start.
- ...
Start/Stop Button Removal
1.
Disconnect the negative(-) battery terminal.
2.
Remove the crash pad lower panel (A).
(Refer to Body - "Crash pad")
...
