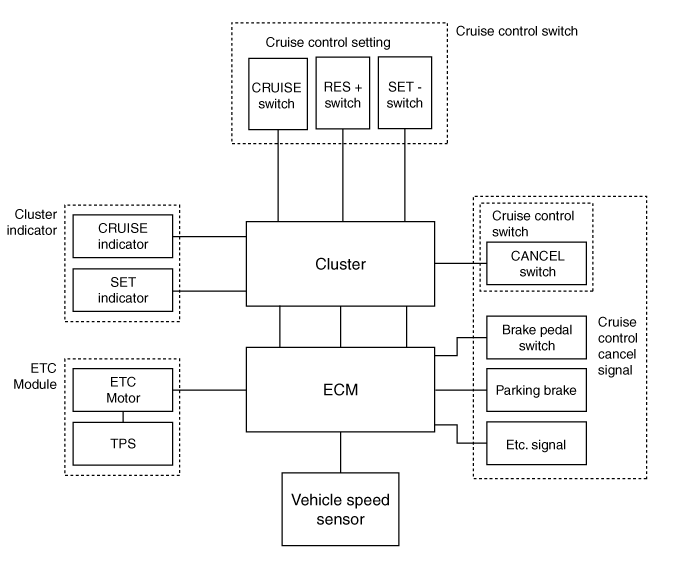

Kia Sorento: System Block Diagram
Kia Sorento (XM, 2011-2015) Service Manual / Engine Electrical System / Cruise Control System / System Block Diagram
Component Parts And Function Outline
| Component part |
Function |
| Vehicle-speed sensor |
Converts vehicle speed to pulse. |
| ECM |
Receives signals from sensor and control switches. |
| Cruise control indicator |
Illuminate when CRUISE switch is ON (Built into cluster) |
| Cruise Control switches |
ON/OFF switch |
Switch for automatic speed control power supply. |
| RES+ switch |
Controls automatic speed control functions by Resume/Accel switch
(Set/Coast switch) |
| SET- switch |
|
| Cancel switches |
Cancel switch |
Sends cancel signals to ECM. |
| Brake-pedal switch |
|
| Transaxle range switch (A/T) |
|
| ETC motor |
Regulates the throttle valve to the set opening by ECM. |
* ETC System : Electronic Throttle Control System
