Kia Sorento: Tail Gate Replacement - Exterior - Body (Interior and Exterior)Kia Sorento: Tail Gate Replacement

Kia Sorento (XM, 2011-2015) Service Manual / Body (Interior and Exterior) / Exterior / Tail Gate Replacement

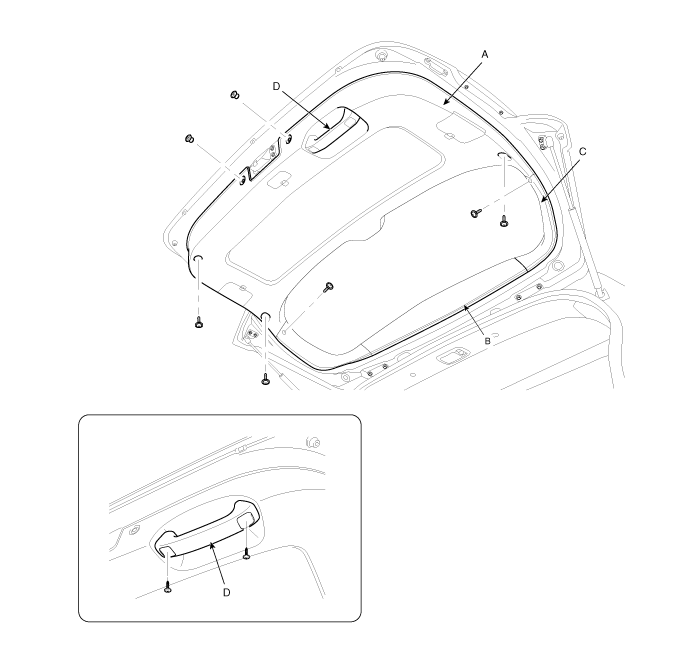

Tailgate Trim Replacement
1.
Using a screwdriver or remover, remove the upper trim (B).
2.
After loosening the mounting screws, then remove the side trim (C).
3.
Pull out the screw covers and then remove the screws and then remove the handle (D).
4.
After loosening the mounting screws, then remove the tailgate trim (A).
5.
Installation is the reverse of removal.
