Kia Sorento: TJ Joint Components

Kia Sorento (XM, 2011-2015) Service Manual / Driveshaft and axle / Driveshaft Assembly / TJ Joint Components

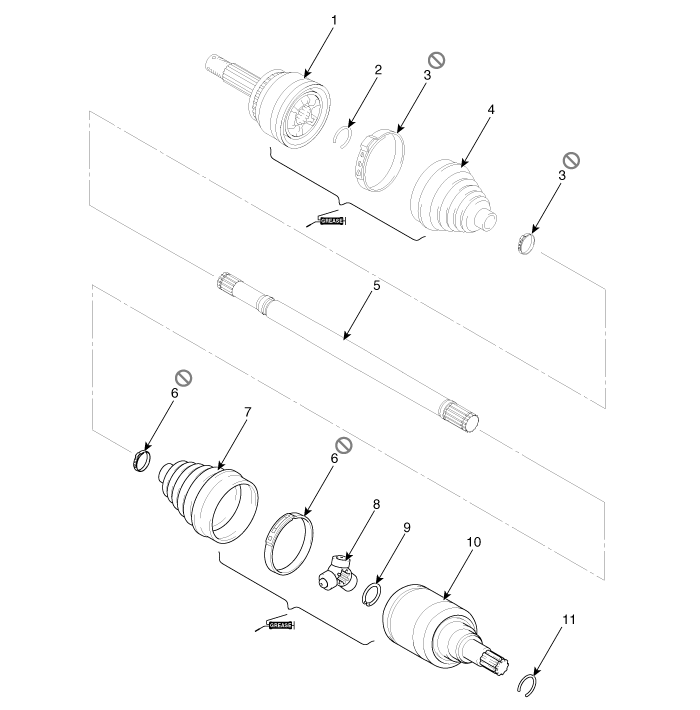

[LH]

1. BJ assembly
2. BJ circlip
3. BJ boot band
4. BJ boot

5. Shaft
6. TJ boot band
7. TJ boot
8. Spider assembly

9. Retainer ring
10. TJ housing
11. Housing circlip

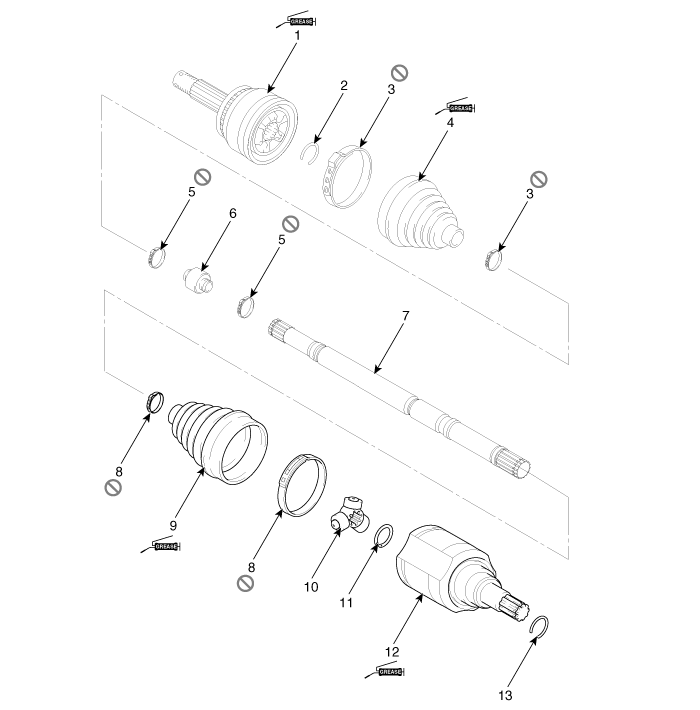

[RH]

1. BJ assembly
2. BJ circlip
3. BJ boot band
4. BJ boot

5. Dynamic damper band
6. Dynamic damper
7. Shaft
8. TJ boot band

9. TJ boot
10. Spider assembly
11. Retainer ring
12. TJ housing

13. Housing circlip

Front Driveshaft Removal and Installation

1. Remove the front wheel and tire (A) from front hub . Tightening torque: 88.2 ~ 107.8 N.m (9.0 ~ 11.0 kgf.m, 65.0 ~ 79.5 lb-ft) ...

TJ Joint Removal

• Special grease must be applied to the driveshaft joint. Do not substitute with another type of grease. ...
