Kia Sorento: Audio Unit Components - Audio - Body Electrical SystemKia Sorento: Audio Unit Components

Kia Sorento (XM, 2011-2015) Service Manual / Body Electrical System / Audio / Audio Unit Components

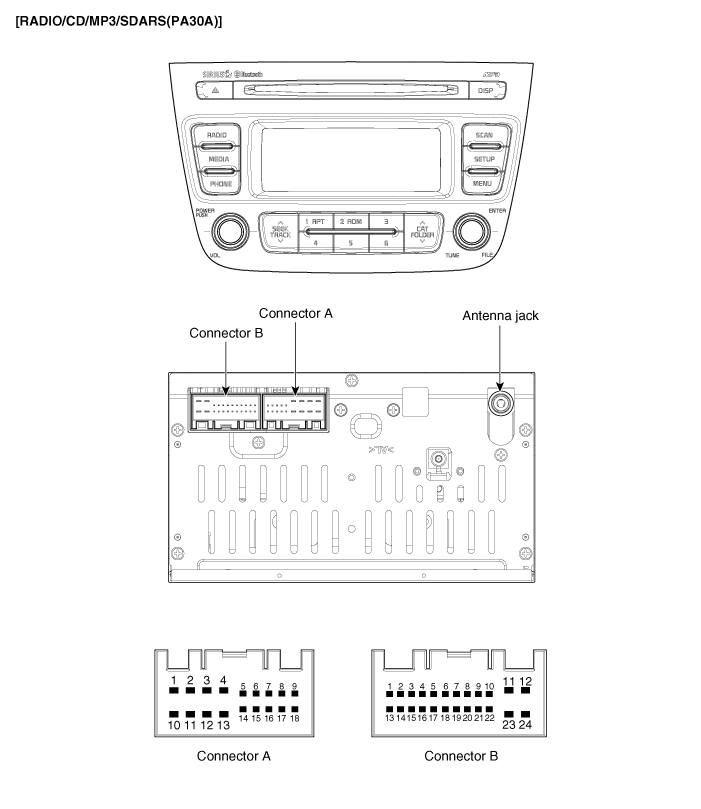

Connector Pin Information
No
Connector A
Connector B
1
Rear left speaker (+)
CAN high
2
Front left speaker (+)
-
3
Front right speaker (+)
-
4
Rear right speaker (+)
Steering remote
5
-
-
6
-
USB D(+)
7
-
USB/iPod VDD
8
Illumination (+)
AUX R Input
9
Detent
AUX gorund
10
Rear left speaker (-)
MIC(+) (Bluetooth)
11
Front left speaker (-)
ACC
12
Front right speaker (-)
B(+)
13
Rear right speaker (-)
-
14
-
-
15
-
-
16
-
Vehicle speed
17
Illumination (-)
Remote GND
18
Remote antenna
USB D(-)
19

USB/iPod GND
20
AUX detect
21
AUX L Input
22
MIC(-) (Bluetooth)
23
-
24
Power GND

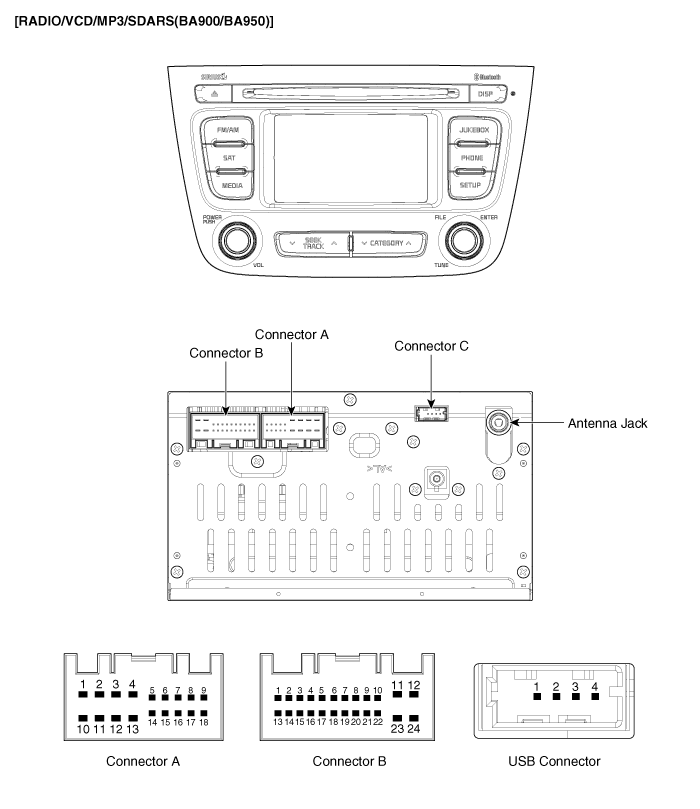

Connector Pin Information (Internal Amplifier Type (BA900))
No
Connector A
Connector B
Connector C
1
Rear left speaker (+)
CAN high
USB ground
2
Front left speaker (+)
-
USB data (+)
3
Front right speaker (+)
-
USB data (-)
4
Rear right speaker (+)
Steering remote
USB 5V
5
-
Rear remote
6
-
Camera video input
7
Ignition
Camera battery (+)
8
Illumination (+)
AUX R Input
9
-
AUX gorund
10
Rear left speaker (-)
MIC(+) (Bluetooth)
11
Front left speaker (-)
ACC
12
Front right speaker (-)
B(+)
13
Rear right speaker (-)
CAN low
14
-
-
15
-
Auto light
16
Door unlock
Vehicle speed
17
Illumination (-)
Remote GND
18
Remote antenna
Camera video ground
19

Camera req.
20
AUX detect
21
AUX L Input
22
MIC(-) (Bluetooth)
23
Camera power ground
24
Power GND

Connector Pin Informatino (External Amplifier Type (BA950))
No.
Connector A
Connector B
USB Connector
1
-
CAN high
USB/ iPod 5V
2
-
-
USB data (-)/ iPod Tx
3
-
-
USB data (+)/ iPod Rx
4
-
Steering remote
USB/ iPod ground
5
SPDIF GND
-

6
SPDIF DN
Camera video input
7
-
Camera battery (+)
8
Illumination (+)
AUX R Input
9
-
AUX gorund
10
-
MIC(+) (Bluetooth)
11
-
ACC
12
-
B(+)
13
-
CAN low
14
-
-
15
SPDIF DP
Auto light
16
Door unlock
Vehicle speed
17
Illumination (-)
Remote ground
18
Remote antenna
Camera video ground
19

Camera req.
20
AUX detect
21
AUX L Input
22
MIC(-) (Bluetooth)
23
Camera power ground
24
Power GND

Component Location
1. Audio unit 2. Tweeter speaker 3. External amplifier 4. Roof antenna (Radio + Siruis) 5. Front door speaker 6. Rear door speaker 7. Antenna feeder cable 8. Antenna cable con...
Audio Unit Removal
   Put on gloves to protect your hands.   ...
