Kia Sorento (XM, 2011-2015) Service Manual / Body Electrical System / Panorama Sunroof / Component Location

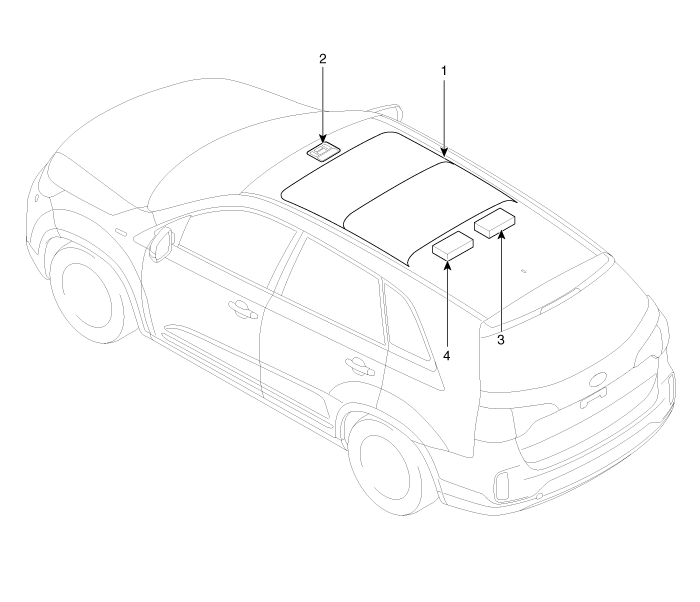

| 1. Panorama sunroof (Panorama) 2. Panorama sunroof switch |
3. Panorama sunroof motor & controller (Master) 4. Roller blind motor & controller (Slave) |
...
Panorama Sunroof
Connector Pin Information
No.
Wire harness connector
Panorama motor
Blind motor
1
Ground 1
...
Circuit Diagram
