Kia Sorento: Component Location - Fuses And Relays - Body Electrical SystemKia Sorento: Component Location

Kia Sorento (XM, 2011-2015) Service Manual / Body Electrical System / Fuses And Relays / Component Location

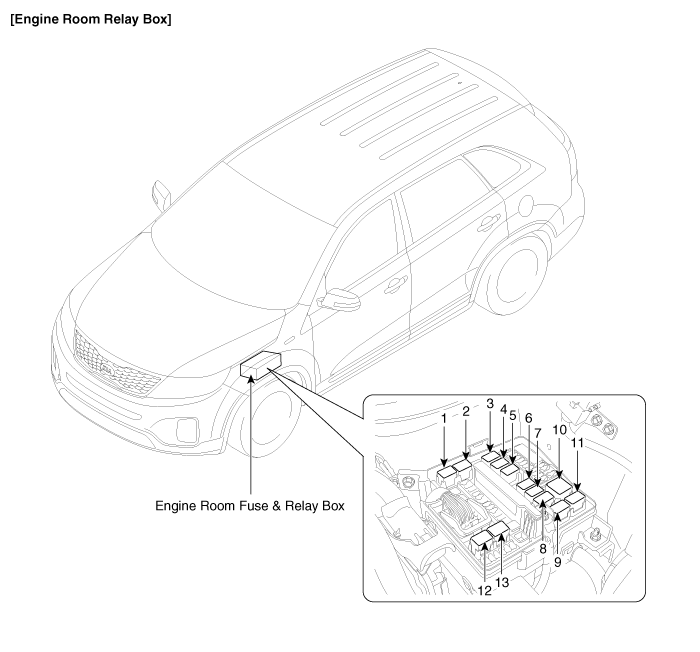

1. Start relay #2 (W/O immo./smart key) /
ACC relay (With smart key)
2. Start relay #1
3. Windshield deicer relay
4. Power outlet relay
5. Wiper relay (low)
6. Burglar alarm horn relay
7. Head lamp RH relay
8. IGN 1 relay
9. IGN 2 relay
10. Cooling fan relay
11. Rear glass defogger relay
12. Horn relay
13. Blower relay

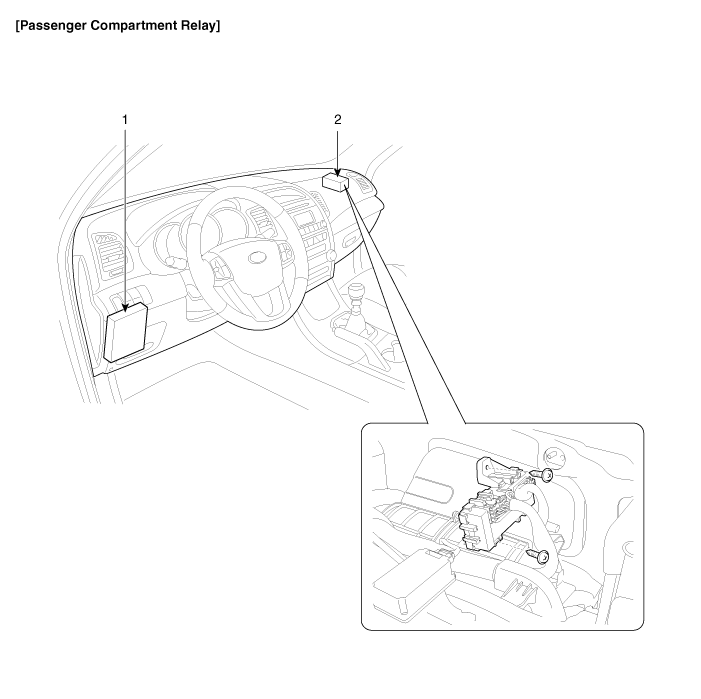

1. IPM
2. Rear wiper relay, Rear blower relay, Rear seat warmer LH relay, Rear seat warmer RH relay, Two turn unlock relay, Tailgate latch relay (Built-in ICM relay box)

Fuses And Relays
...
Relay Box (Engine Compartment) Component Location
...
