Kia Sorento: Relay Box (Engine Compartment) Component Location
Kia Sorento (XM, 2011-2015) Service Manual / Body Electrical System / Fuses And Relays / Relay Box (Engine Compartment) Component Location

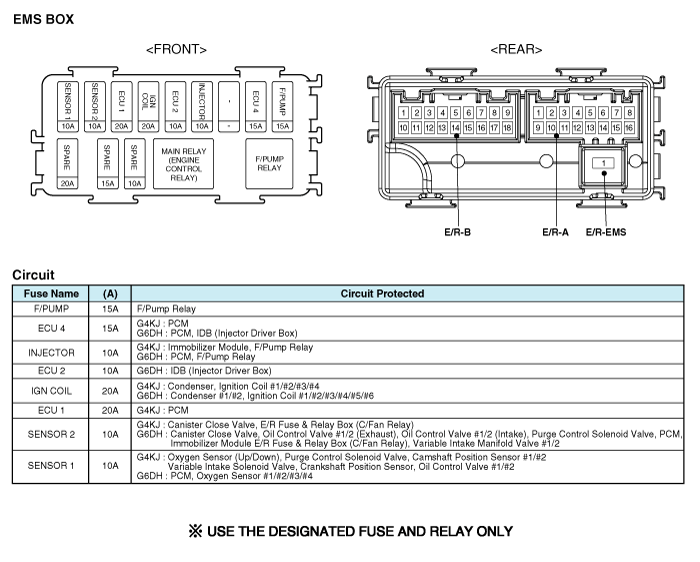

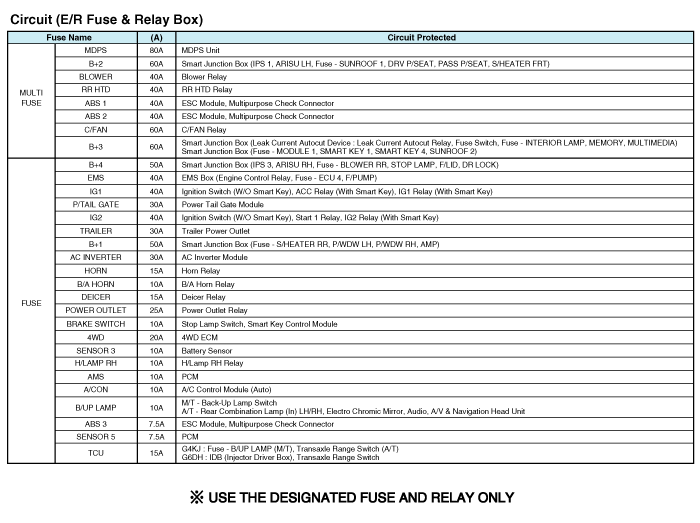

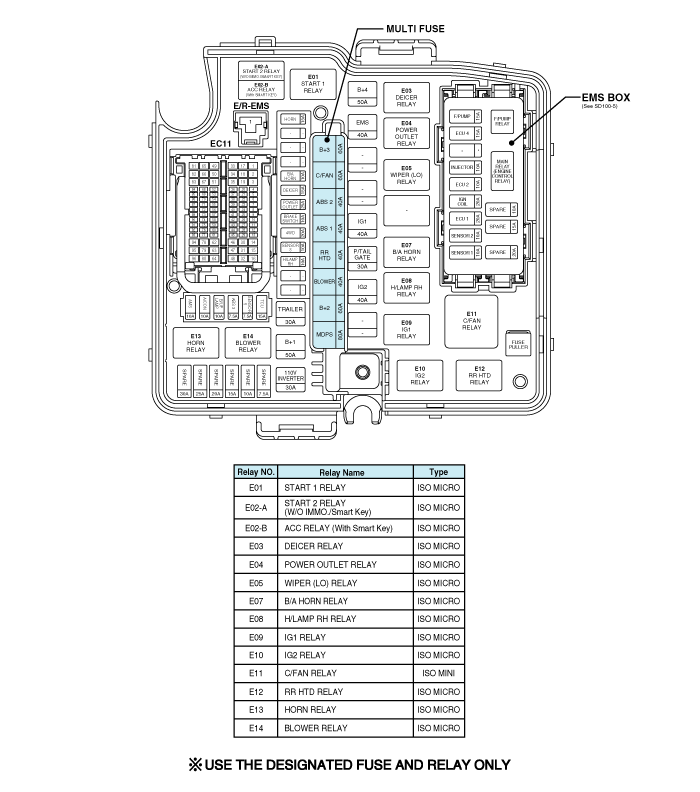

Component Location
1. Start relay #2 (W/O immo./smart key) /
ACC relay (With smart key)
2. Start relay #1
3. Windshield deicer relay
4. Power outlet relay
5. Wiper relay (low)
6. Burglar alarm hor...
Relay Box (Engine Compartment) Inspection
1.
Disconnect the negative (-) battery terminal.
2.
Pull out the relay from the engine compartment relay box.
Power Relay (Type A)
Check f...
