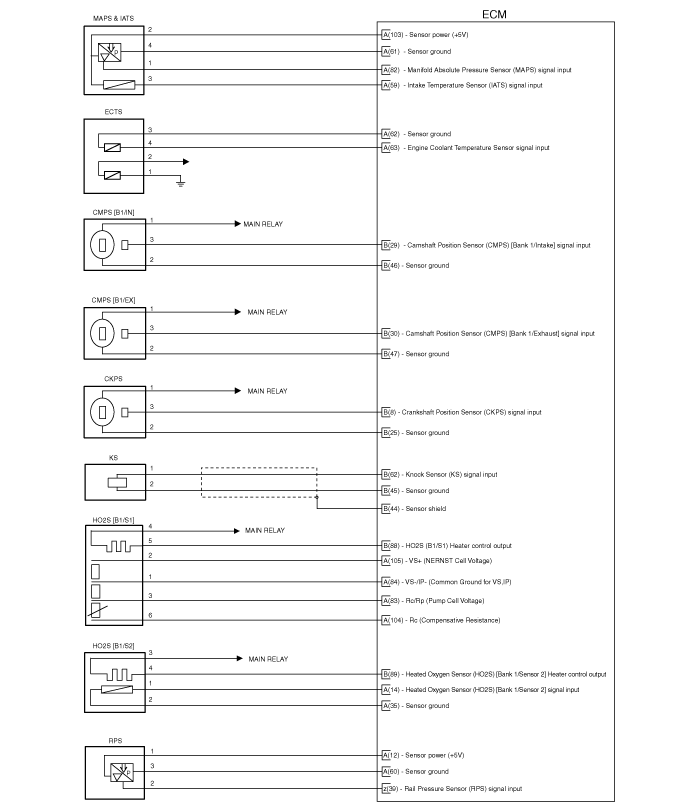

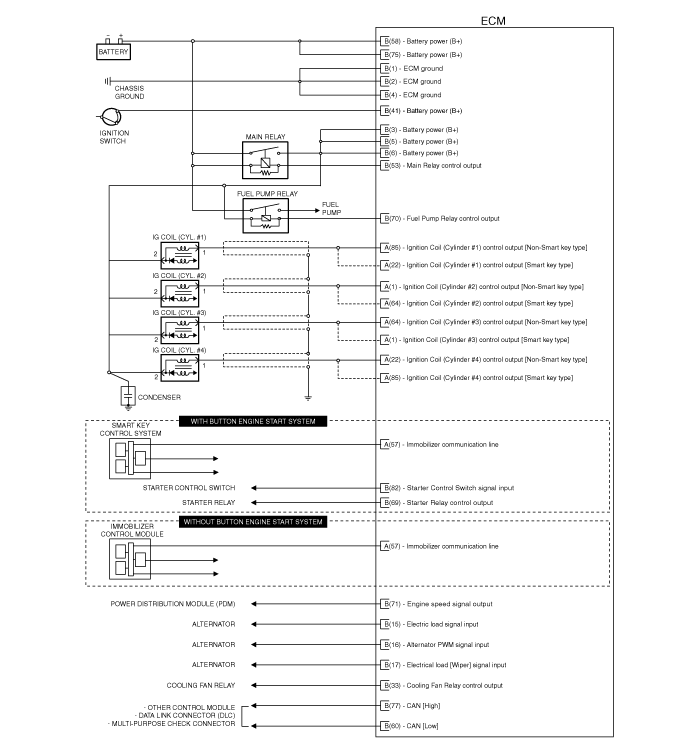

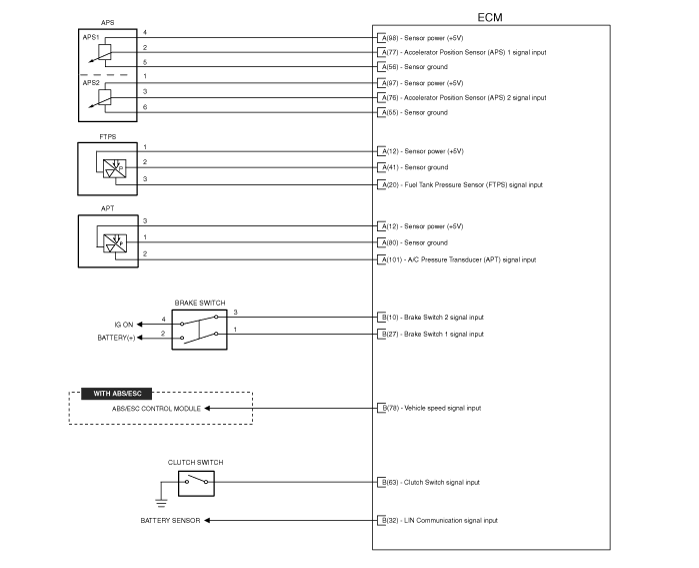

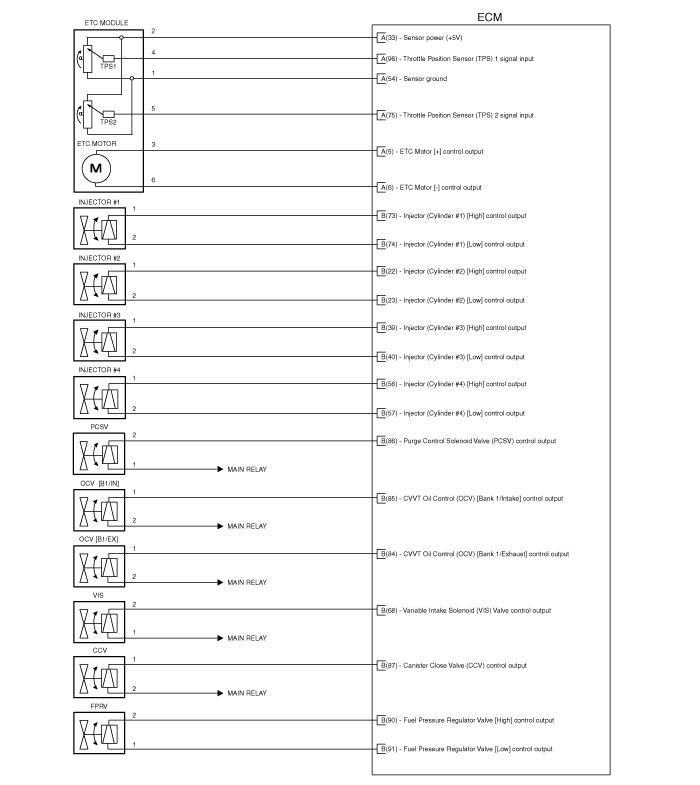

Kia Sorento: Engine Control Module (ECM) Circuit Diagram
Kia Sorento (XM, 2011-2015) Service Manual / Engine Control / Fuel System / Engine Control System / Engine Control Module (ECM) Circuit Diagram
ECM Terminal And Input/Output signal
ECM Terminal Function
Connector [C300-A]
Pin
No.
Description
Connected to
1
Ignition Coil (Cylinder #2) control output
[NON-smart key type]
...
Engine Control Module (ECM) Removal
1.
Turn ignition switch OFF and disconnect the negative (-) battery
cable.
2.
Disconnect the ECM Connector (A).
3.
...
