Kia Sorento: CVVT (Continuously Variable Valve Timing) System Operation Principle - Exhaust Emission Control System - Emission Control SystemKia Sorento: CVVT (Continuously Variable Valve Timing) System Operation Principle

Kia Sorento (XM, 2011-2015) Service Manual / Emission Control System / Exhaust Emission Control System / CVVT (Continuously Variable Valve Timing) System Operation Principle

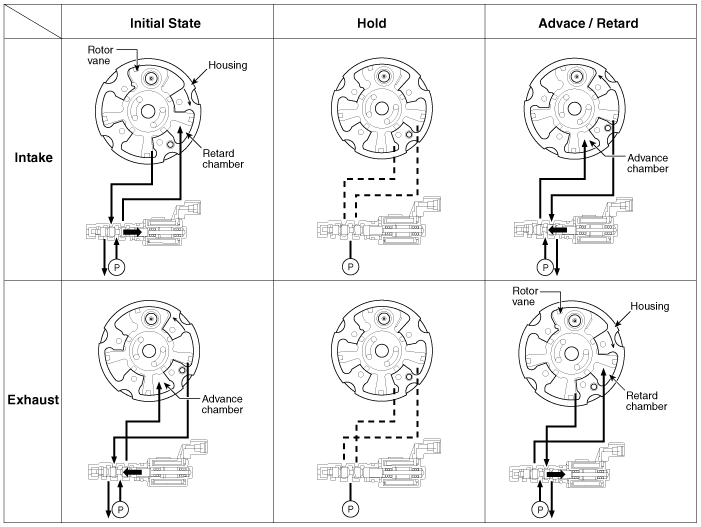

The CVVT has the mechanism rotating the rotor vane with hydraulic force generated by the engine oil supplied to the advance or retard chamber in accordance with the CVVT oil control valve control.
