Power Tailgate Inspection With GDS
| 1. |
Check the power Tailgate module input/output value by using the
GDS. If the operation of power Tailgate module is abnormal, replace
power trunk drive unit.
|
| 2. |
To check the DTC of the power trunk module, select "PTM"
|
| 3. |

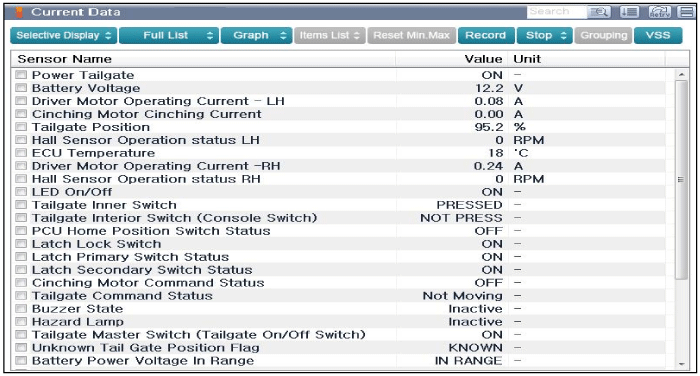

Select "Input/output monitoring".
|
