Kia Sorento: Rear Air Conditioner Unit Component Location
Kia Sorento (XM, 2011-2015) Service Manual / Heating,Ventilation And Air Conditioning / Rear Air Conditioner / Rear Air Conditioner Unit Component Location

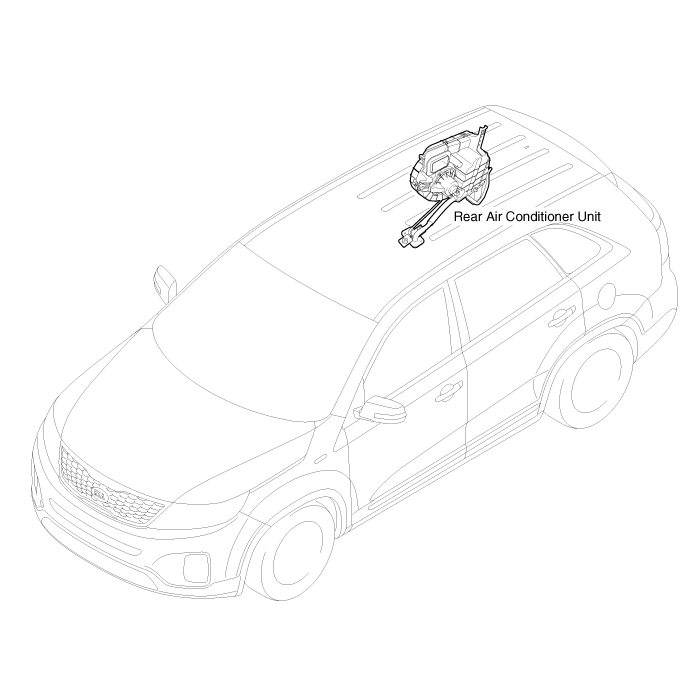

Rear Air Conditioner
Rear Air Conditioner Unit Components
1. Rear Heater Case (LH)
2. Rear Heater Case (RH)
3. Lower Case
4. Drain Hose
5. Rear Evaporator Core
6. Refrigerant Line
7. Flange Lining
8. O-Ring
9. Rear Expension V...
