Kia Sorento: Rear Air Conditioner Unit Components
Kia Sorento (XM, 2011-2015) Service Manual / Heating,Ventilation And Air Conditioning / Rear Air Conditioner / Rear Air Conditioner Unit Components

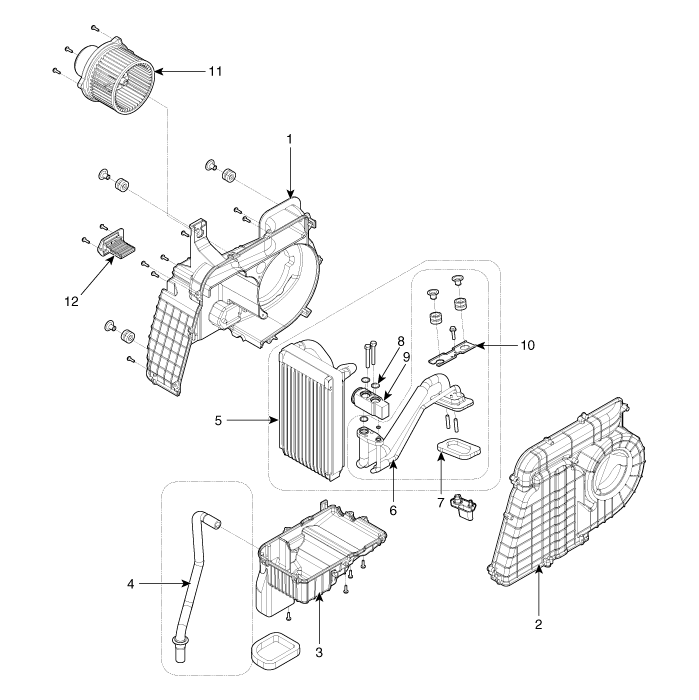

| 1. Rear Heater Case (LH) 2. Rear Heater Case (RH) 3. Lower Case 4. Drain Hose |
5. Rear Evaporator Core 6. Refrigerant Line 7. Flange Lining 8. O-Ring |
9. Rear Expension Valve 10. Bracket 11. Rear Blower Motor 12. Rear Blower Resistor |
Rear Air Conditioner Unit Component Location
Rear Air Conditioner Unit Replacement
1.
Disconnect the negative (-) battery terminal.
2.
Recover the refrigerant with a recover/recycling/charging station.
3.
...
