Kia Sorento: Water Temperature Control Assembly Components

Kia Sorento (XM, 2011-2015) Service Manual / Engine Mechanical System / Cooling System / Water Temperature Control Assembly Components

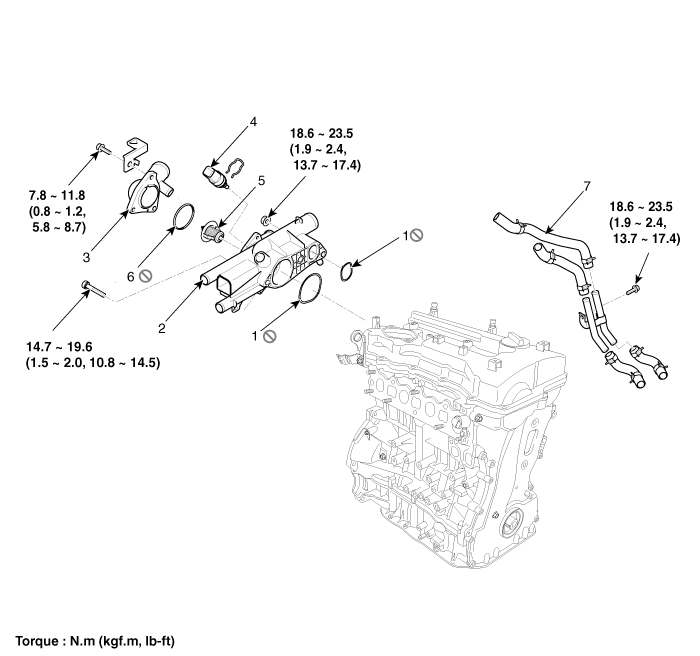

1. O-ring
2. Water temperature control assembly
3. Water inlet fitting
4. Engine coolant temperature sensor

5. Thermostat
6. Thermostat gasket
7. Oil cooler coolant hose
