Kia Sorento: Dynamic Damper Components
Kia Sorento (XM, 2011-2015) Service Manual / Driveshaft and axle / Driveshaft Assembly / Dynamic Damper Components

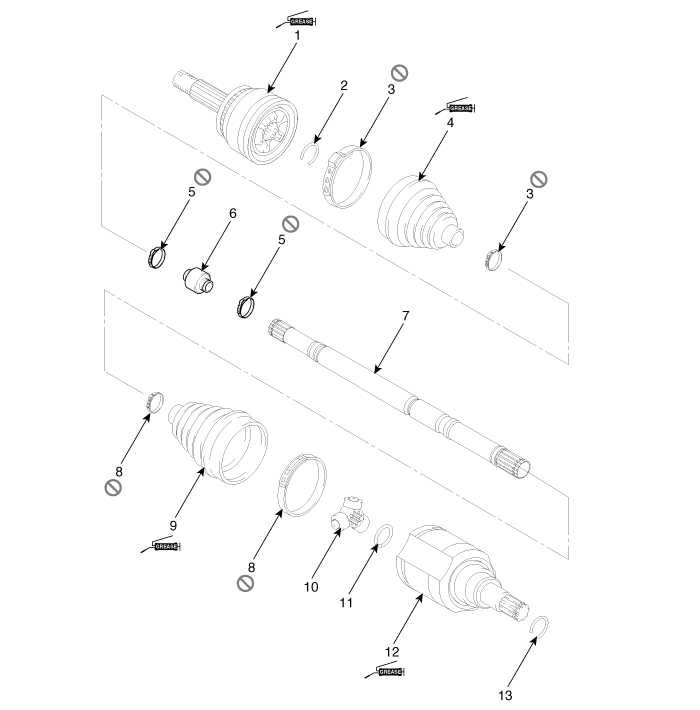

| 1. BJ assembly 2. BJ circlip 3. BJ boot band 4. BJ boot |
5. Dynamic damper band 6. Dynamic damper 7. Shaft 8. TJ boot band |
9. TJ boot 10. Spider assembly 11. Retainer ring 12. TJ housing |
13. Housing circlip |
TJ Joint Installation
1.
Wrap tape around the driveshaft spline(TJ) to prevent damage to
the boot.
2.
Using the alignment marks (D) made during disassembly as a guide,
...
Dynamic Damper Removal
1.
Remove the front driveshaft.
(Refer to Driveshaft Assembly - “Front Driveshaft”)
2.
Remove the TJ joint assembly.
(Refer to Drives...
