Kia Sorento: Alternator Components

Kia Sorento (XM, 2011-2015) Service Manual / Engine Electrical System / Charging System / Alternator Components

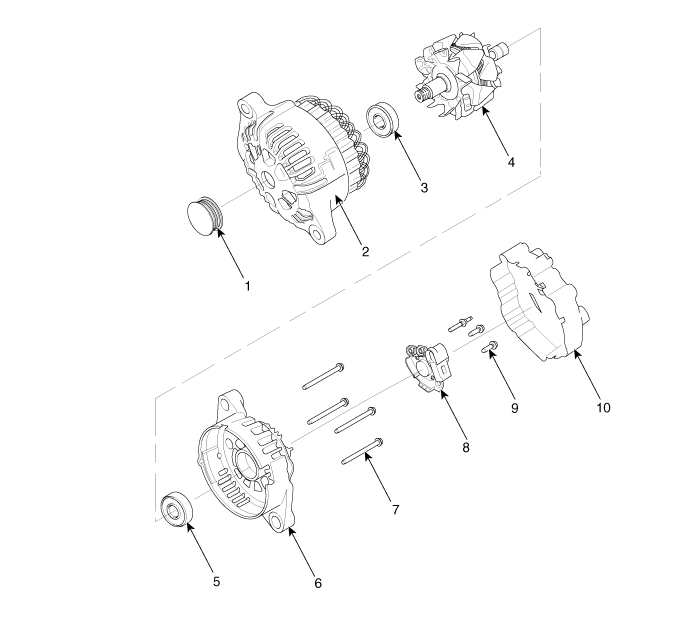

1. Overrun Alternator Pully (OAP)
2. Front bracket
3. Front bearing
4. Rotor
5. Rear bearing

6. Rear bracket
7. Through bolt
8. Regulator assembly
9. Regulator bolt
10. Rear cover

Alternator Specification

Alternator Item Specification Rated voltage 13.5V, 130A Speed in use 1,000 ~ 18,000 rpm Voltage regulator IC Regulator built-...

Alternator Circuit Diagram

• COM signal - When controlling the voltage generated, the ECM sends the target voltage data to the alterna...
