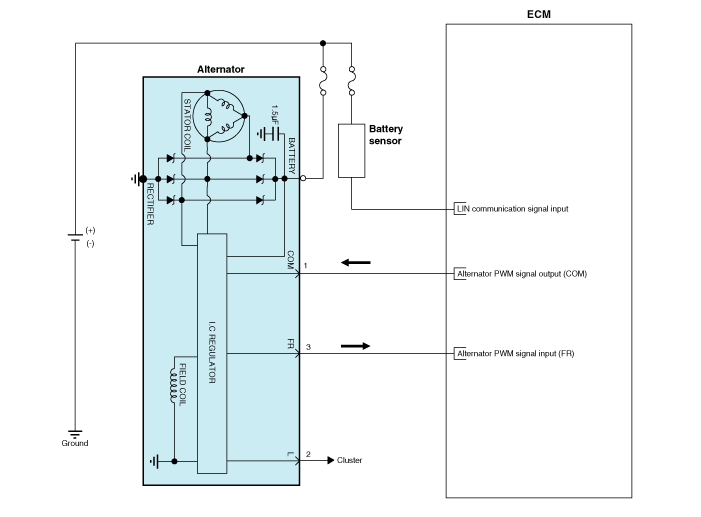

Kia Sorento: Alternator Circuit Diagram - Charging System - Engine Electrical SystemKia Sorento: Alternator Circuit Diagram

Kia Sorento (XM, 2011-2015) Service Manual / Engine Electrical System / Charging System / Alternator Circuit Diagram


    1. Overrun Alternator Pully (OAP) 2. Front bracket 3. Front bearing 4. Rotor 5. Rear bearing 6. Rear bracket 7. Through bolt 8. Regulator assembly 9. Regulator bolt 10. ...
    1. Disconnect the battery negative terminal. 2. Disconnect the air compressor connector (A) and the alternator connector (B), and remove the cable fro...
